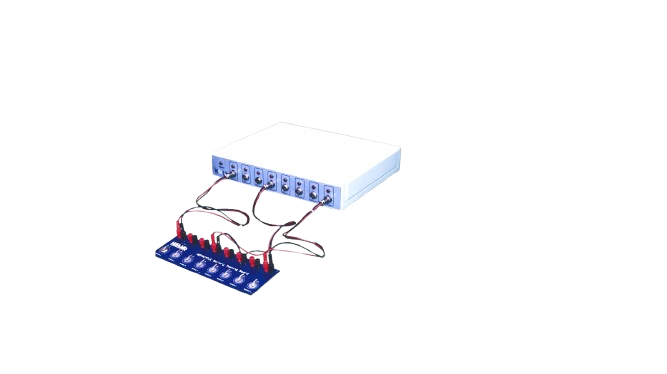

HEFACYCLE
8-Channel Multi-Battery Analysis System
HEFACYCLE is an 8-channel multi-battery analysis system. It precisely analyzes battery performance, capacity, and cycle life using constant current (CC) and constant voltage (CV) charge/discharge methods, providing a reliable and scalable solution for R&D and production testing.
Key Features
8 Independent Channels
Test up to 8 batteries simultaneously with independent control
CC/CV Charging
Constant current and constant voltage charging modes
Cycle Life Testing
Automated charge/discharge cycling for lifetime analysis
Real-time Monitoring
Live voltage, current, and capacity monitoring for all channels
Data Logging
Comprehensive data recording and export capabilities
Safety Features
Over-voltage, over-current, and temperature protection
Advanced Control Software
Powerful software for comprehensive battery testing and analysis
Data Visualization
Easily interpret measurement data through graphs.
Data Analysis & Reporting
Analyze cycle data and capacity trends
Technical Specifications
| BA100-E | BA100-A | |
|---|---|---|
| Power Input | 12–24 V DC 3 A adapter | 12–24 V DC 3 A adapter |
| Test Method | Constant current charge, constant current discharge, constant voltage charge, rest, etc | Constant current charge, constant current discharge, constant voltage charge, rest, etc |
| Current Range (Programmable) | 0.001 – 1 mA (<0.1% max reading error + 0.1% of range) | 0.01 – 10 mA (<0.1% max reading error + 0.1% of range) |
| Voltage Range (Programmable) | 0.1 – 5 V (0.05% max reading error) | 0.1 – 5 V (0.05% max reading error) |
| # of Channels | 8 channel | 8 channel |
| Independent Channels | Yes | Yes |
| Software | Threshold adjustment; monitor current/voltage/capacity vs time; Excel output (voltage, time, current, capacity, coulombic efficiency, etc) | Threshold adjustment; monitor current/voltage/capacity vs time; Excel output (voltage, time, current, capacity, coulombic efficiency, etc) |
| Sample Time (Adjustable) | Minimum 1 s | Minimum 1 s |
| PC Interface | RS485 to USB converter | RS485 to USB converter |
| Optional | Temperature sensor (−10 – 100 °C) | Temperature sensor (−10 – 100 °C) |
Applications
Battery R&D
Develop and optimize new battery chemistries and designs
Quality Control
Production testing and quality assurance for battery manufacturing
Cycle Life Studies
Evaluate long-term performance and degradation mechanisms
Performance Testing
Characterize capacity, efficiency, and power capabilities
